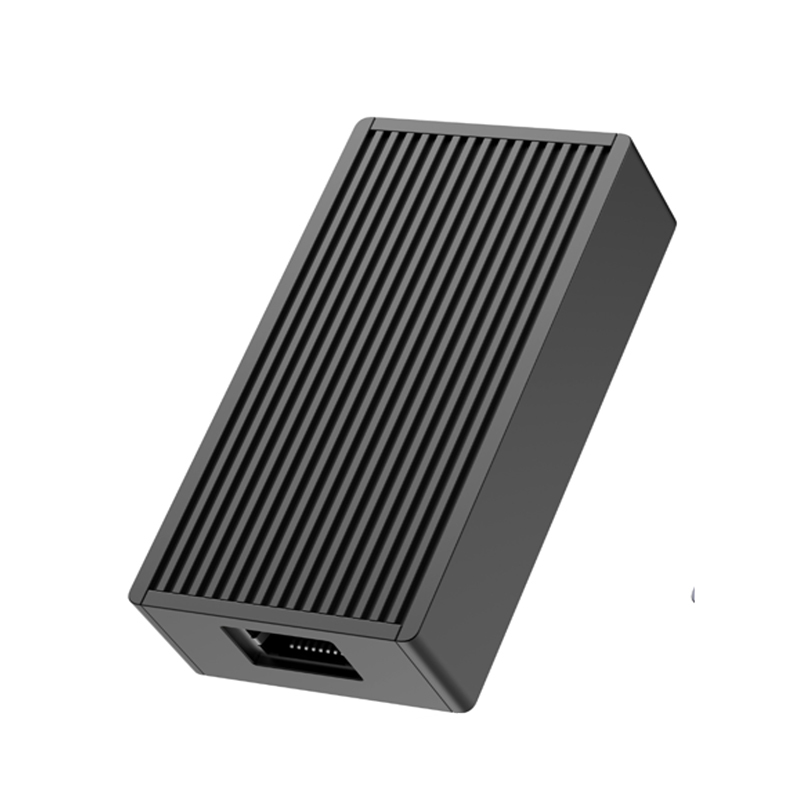

10GbE-T2 is a high-speed USB Ethernet adapter that provides up to 10GbE (10 Gigabit Ethernet) connectivity for PCs and other hosts.
It provides Multi Gigabit Ethernet access to your network at six speeds: 10Gbps, 5Gps, 2.5Gbps, 1G, 100Mbps and 10Mbps.
Efficient Multi-Gigabit Connectivity for Professional Users
The 10GbE-T2 USB 10GbE Adapter is engineered to extend ultra-high-speed network interfaces to workstations, laptops, and servers lacking built-in 10 Gigabit Ethernet support. Targeted at network engineers, IT infrastructure teams, and system integrators, this device facilitates enhanced data throughput and network versatility via a usb 10gbe ethernet adapter manufacturer designed solution. By offering six selectable speeds up to 10G, it ensures compatibility with diverse network infrastructures while maintaining plug-and-play functionality with mainstream operating systems, making it an optimal choice for enterprise environments requiring robust network scalability.
Advanced Technology Ensures High Performance and Compatibility
This multi-gigabit usb 3.2 adapter utilizes a Realtek RTL8159 chipset delivered through a USB Type-C Gen 2 interface, enabling data transfer rates up to 20Gbps and support for IEEE 802.3 standards including 802.3bz and 802.3an. The device incorporates IEEE 802.1Q VLAN tagging and Jumbo Frame support up to 16K bytes, contributing to optimized packet handling and network efficiency in high-load conditions. Its PCI Express 3.0 bus integration and a lightweight, portable design backed by LED indicators enable precise real-time status monitoring. Reliance on USB-C power supply simplifies setup without external power, confirming seamless deployment in advanced networking setups.
Application Across Diverse Professional Networking Environments
The 10GbE-T2 is pertinent in sectors requiring robust USB-based network expansion, including virtualization labs, data centers, and mobile workstation setups. It serves as a type-c 10 gigabit rj45 dongle ideal for rapid data backups, high-throughput file transfers, and network testing scenarios. Its compatibility with CAT6A cables and multi-speed support facilitate integration with existing multi-gigabit Ethernet networks, supporting operational continuity in IT infrastructure upgrades and troubleshooting. This solution empowers organizations to implement flexible, cost-effective, and high-performance Ethernet connectivity with minimal infrastructure adaptation.
Product Advantages
Design and System Integration Benefits
Constructed with a sturdy Altium Alloy enclosure, the 10GbE-T2 offers a compact and rugged form factor suitable for both stationary and portable installations. Its USB-C interface combined with RJ45 connectivity ensures straightforward interoperability within modern PC architectures. This design promotes modular integration as a wholesale usb-c 10g network adapter option, reducing complexity in hardware procurement and deployment. The inclusion of the Realtek RTL8159 chipset facilitates standardized industry compliance, promoting compatibility and streamlined vendor support within multi-vendor network environments. Its LED link and activity indicators offer intuitive monitoring critical for system administrators managing multiple endpoints.
Performance Reliability and User Efficiency
The adapter delivers consistent multi-gigabit speed performance spanning 10G to 10Mbps, supporting full-duplex communication that maximizes network bandwidth utility. Its power delivery over USB-C negates the need for external adapters, improving usability and reducing hardware clutter. As a rtl8159 usb network adapter, it exhibits rapid system recognition and driver compatibility, facilitating swift integration into existing network ecosystems. This combination of high throughput, ease of installation, and broad speed adaptability makes it invaluable for enterprises demanding reliable connectivity with minimal downtime and maintenance.
Features
Delivers an 10G network connection with USB-C
Multi-Gigabit Ethernet connectivity with six network speeds: 10G, 5G, 2.5G, 1G, 100Mbps, 10Mbps
Support 10Gbps at 100m Cat 6a cable and 5Gbps/2.5Gbps/1Gbps/100Mbps at 100m Cat 5e/Cat 6 cable
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.az, IEEE 802.3bz and IEEE 802.3an standards
Powered directly from the USB ports
IEEE 802.1Q VLAN Tagging support
Jumbo Frame support
Activity and Link indicators
Compact, lightweight design for maximum portability
Hardware
Material: Altium Alloy
Bus Type: PCI Express 3.0 (8.0 GT/s)
Chipset: Realtek RTL8159
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an
Interface: RJ45
Connector Type(s): RJ-45, USB Type-C (24 pin, Gen 2, 20Gbps)
LED Indicators:
Amber (Link): Solid on = Link established
Green (Activity): Blinking = Data activity (traffic)
Dimension: 59*28.5*12.5mm
Weight: 37g
Environmental
Humidity: 20~80% RH
Operating Temperature: °C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Performance
Compatible Networks: 10G/5G/2.5G/1G/100Mbps/10Mbps
Support full duplex
Jumbo Frame Support: 16K max
Setup
Connect 10GbE-T2 to your host using a cable via the USB female port
Driver Note
Most systems support plug-and-play. Some systems or specific OS versions/environments may require driver installation.
For the latest drivers and support information, please visit Realtek’s official page: https://www.realtek.com/Download/List?cate_id=585
Cable RecommendationCable
10GbE: CAT6A or above
5G / 2.5G: CAT6
1GbE or below: CAT5e or above
Notes
For best 10GbE performance, use a USB 3.2 Gen2 host port and a high-quality cable
Throughput may be reduced when using hubs/docks/long cables
Surface warming under high load is normal
Use Scenarios
High-Speed Data Transfer in IT Infrastructure Upgrades
Within enterprise IT departments, the 10GbE-T2 USB 10GbE adapter operates as a critical tool for extending high-speed connectivity to legacy systems lacking onboard 10G Ethernet capabilities. Its role in accelerating backup processes and large file transfers between servers or storage arrays is significant, enabled by the multi-gigabit usb 3.2 adapter standard compliance and CAT6A cable compatibility. IT professionals deploy this adapter to rapidly upgrade and validate network segments during infrastructure overhauls, ensuring minimal service interruptions. Its plug-and-play nature and VLAN tagging support allow seamless integration into existing network security frameworks and segmented workflows.
Virtualization Lab Networking Enhancement
In virtualization and development environments, high bandwidth and low latency connections are essential for optimal VM performance and testing. The device acts as a plug-in networking expansion via USB-C, extending up to 10G speeds to laptops or compact servers. This type-c 10 gigabit rj45 dongle supports network segmentation through IEEE 802.1Q, ideal in lab setups requiring isolated traffic flows for multiple simultaneous virtual machines. Its compatibility with common network standards ensures it fits within sophisticated lab topologies, enhancing data throughput without incurring substantial hardware changes or overhead. This flexibility aids lab technicians and network engineers in evaluating network performance at the multi-gigabit scale.
Do I need to install drivers for the 10GbE-T9 USB 10GbE Adapter?
Most users will find the adapter supports plug-and-play functionality. However, depending on your specific OS or environment, you might need to install drivers. We provide support to ensure your rtl8159 usb network adapter works reliably across various platforms.
What cables are recommended to achieve full 10GbE speeds with this adapter?
For optimum performance on the 10GbE speed, we recommend using CAT6A or higher quality cables. For 5G and 2.5G speeds, CAT6 cables are adequate. Lower speeds such as 1GbE or below work with CAT5e cables. This ensures stable throughput when used with the usb-c to 10gbe ethernet adapter.
Can you customize the 10GbE-T2 adapter for OEM/ODM projects?
Yes, we offer customization options for bulk orders as part of our OEM/ODM services. Our expertise in manufacturing usb 10gbe ethernet adapter manufacturer solutions allows us to tailor product features, firmware, or branding to meet your project specifications.
What specifications ensure compatibility with different host devices?
The adapter features a USB Type-C Gen 2 interface and supports multiple Ethernet speeds for versatile use. It complies with IEEE 802.3 standards and uses the Realtek RTL8159 chipset to provide broad system compatibility. Using a USB 3.2 Gen2 host port maximizes performance on a variety of devices.
